Zhejiang Weilan Hangdun Precision Ceramic Technology Co., Ltd. is an advanced ceramic manufacturer specializing in production, research and development and sales in China. The company has a well-trained professional technical team with core technologies of precision ceramics such as ceramic substrates, structural ceramics and functional ceramics. Committed to the development and sales of high-quality alumina, zirconia, aluminum nitride and silicon nitride and other advanced ceramics, including ceramic substrates, IC packaging substrates, LED packaging substrates and high-strength structural ceramics.

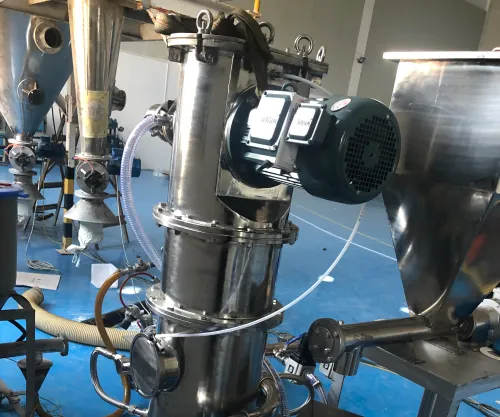

Jet Mill Classification：Circulating tubular jet mill
After the material enters the crushing chamber through the screw feeder, the impact energy of high-speed airflow is ejected from several oppositely arranged nozzles, and the collision and friction force generated by the rapid expansion of the airflow to form a fluidized bed suspension and boiling will crush the material. The coarse and fine mixed powder is driven by the negative pressure airflow through the turbine classification device set on the top, the fine powder is forced to pass through the classification device, and is collected by the cyclone collector and bag filter, and the coarse powder is thrown by gravity and centrifugal force generated by the high-speed rotating classification device Go to the four walls and settle back to the crushing chamber to continue crushing.
Jet mill (fluidized bed jet mill) is a compressed air that is accelerated into a supersonic airflow through a Laval nozzle and then injected into the pulverizing zone to make the material fluidized (airflow expansion is a fluidized bed suspension boiling and collides with each other), Therefore each particle has the same motion state. In the crushing zone, the accelerated particles collide and crush each other at the intersection of the nozzles. The pulverized material is transported to the classification area by the upward air flow, and the fine powder that meets the particle size requirement is screened out by the horizontally arranged classification wheel, and the coarse powder that does not meet the particle size requirement is returned to the pulverizing area for further pulverization. The qualified fine powder enters the high-efficiency cyclone separator with the airflow to be collected, and the dust-laden gas is filtered and purified by the dust collector and then discharged into the atmosphere.
The jet mill, cyclone separator, dust collector and induced draft fan form a complete set of crushing system. After the compressed air is filtered and dried, it is sprayed into the crushing chamber at a high speed through the Laval nozzle. At the intersection of multiple high-pressure airflows, the material is repeatedly collided, rubbed and sheared and crushed. The crushed material rises with the action of the fan. The airflow moves to the grading area. Under the strong centrifugal force generated by the high-speed rotating grading turbine, the coarse and fine materials are separated. The fine particles that meet the particle size requirements enter the cyclone separator and the dust collector through the grading wheel for collection. The coarse particles descend to the crushing area and continue to be crushed. .
Jet mill classification:Spray airflow grinding
The raw materials are fed into the crushing chamber by a venturi nozzle, and the high-pressure air flow is sprayed into the racetrack-shaped circulating tube crushing chamber with unequal diameter and variable curvature through a set of nozzles, and the particles are accelerated to collide, collide, and rub against each other to be crushed. At the same time, the swirling flow also drives the crushed particles up the pipeline into the classification area, and the dense material flow is divided under the action of the centrifugal force field in the classification area. The coarse particles are returned to the outer layer along the descending pipe to continue to circulate and crush.
The return visit is timely and professional is recommended.
Attentive service and perfect after-sale service.
Rigorous craftsmanship and fast delivery.
Stable quality and advanced technology.
Our delivery date is 30--60 days.
Independent production of high-purity alumina powder for more than 20 years, mastering the upstream supply of .
Adhering to the concept of providing customers with high-quality services, our company can provide customers with one-stop services such as design and professional advice, and provide customers with overall solutions!
Our company has been engaged in high-purity alumina (99.99%) for more than 20 years, mastering the core technology of alumina powder from the source, coupled with sophisticated production technology, so as to provide users with high-quality, cost-effective high-purity alumina Related Products.
